TEKBOX TBCP1-200 RF Current Monitoring Probe
TBCP1-200

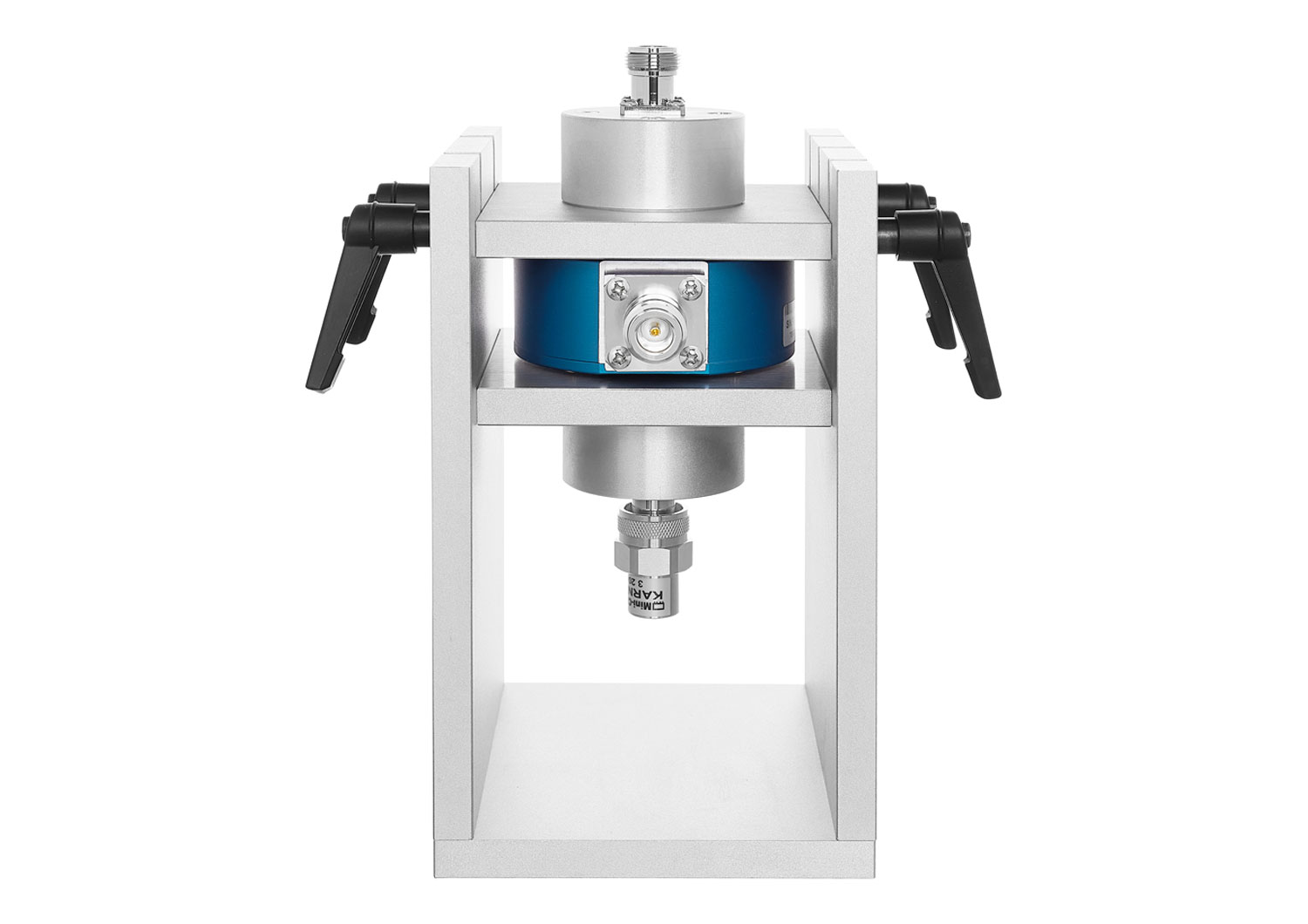

TEKBOX TBCP1-200 RF CURRENT MONITORING PROBE
Price:
£
269.00 (322.80 inc VAT)
Quantity in Stock
:
(Call for stock status)
Availability:
Stock models DELIVERED NEXT WORKING DAY (UK Only) for orders placed before 15:00 (Mon - Fri)
Product Code:
TBCP1-200
Description
Specification
The TBCP1-200 is a fixed aperture RF current monitoring probe, expanding the Tekbox product range of affordable EMC pre-compliance test equipment.
The probe has a 3dB bandwidth of approximately 200MHz and is characterised and usable over the frequency range from 10kHz to 500MHz.
Characterised Frequency Range :
10kHz to 500MHz
Aperture Diameter :
25mm
Outside Diameter :
76mm
Height :
31mm
Weight :
320g
Connector Type :
N Female
Transfer Impedance :
3 to 17 dBΩ
Max. Primary Current :
(DC - 400Hz): 80A
Max. Primary Current :
(RF): 3A
Max. Core Temperature :
125°C
